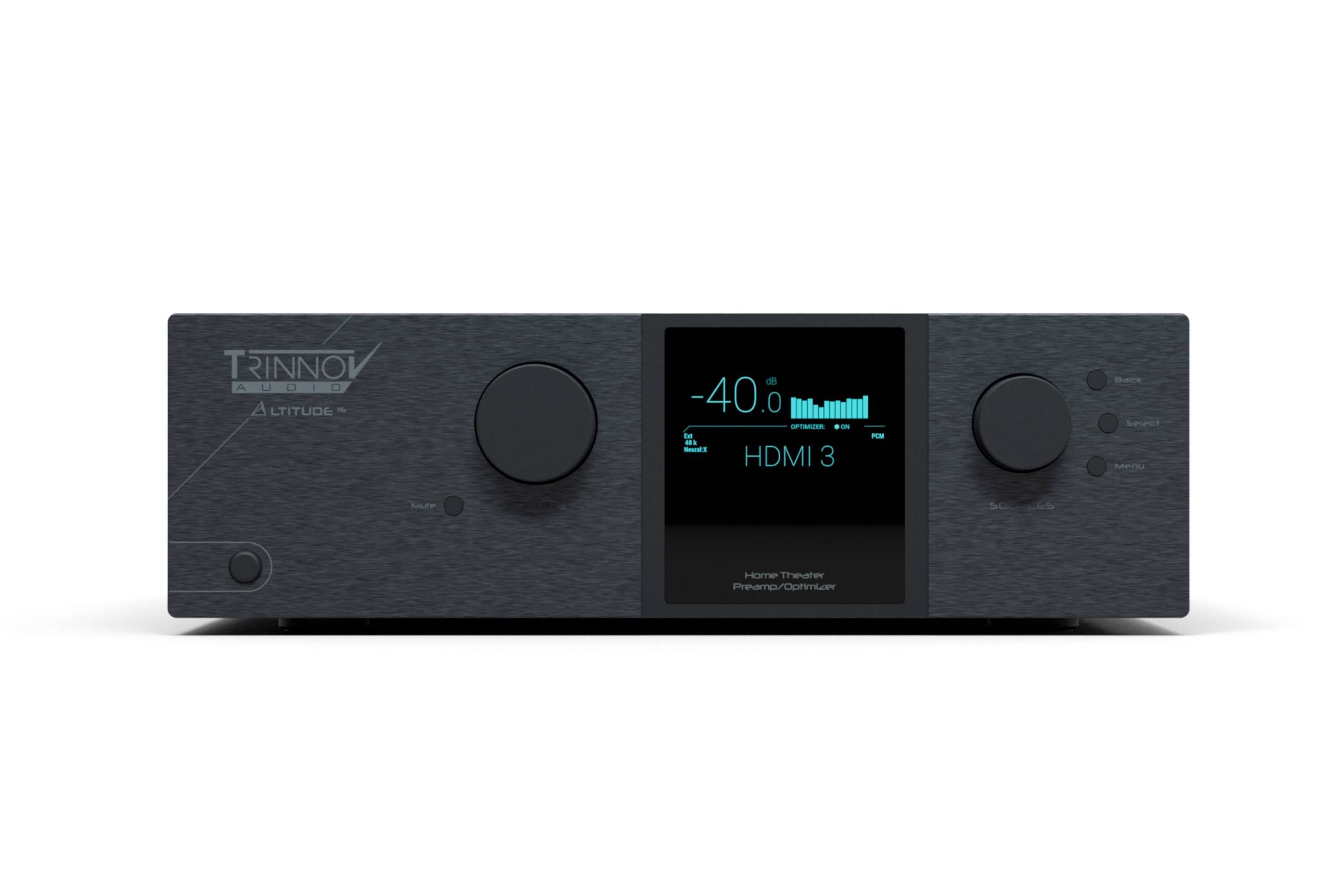

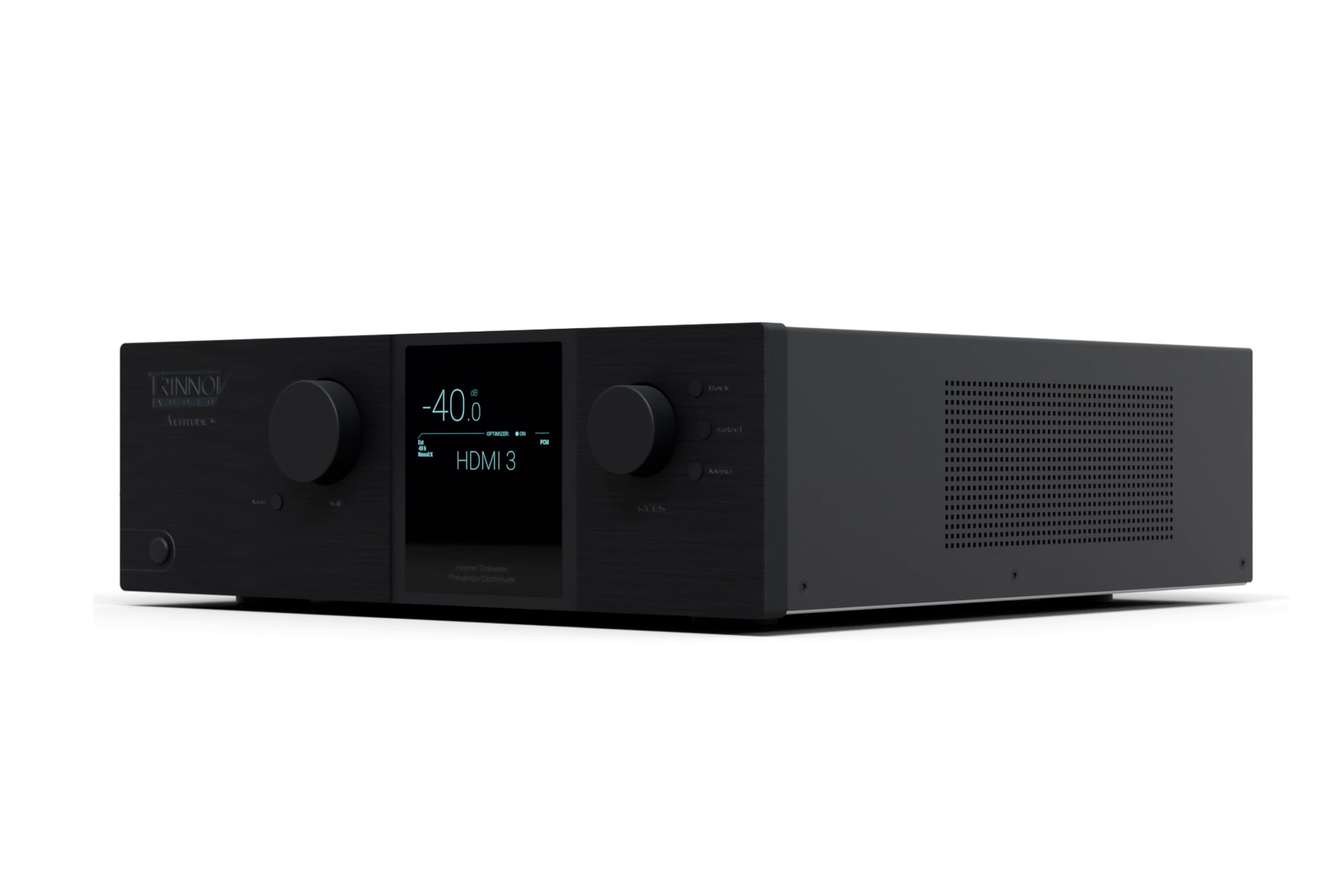

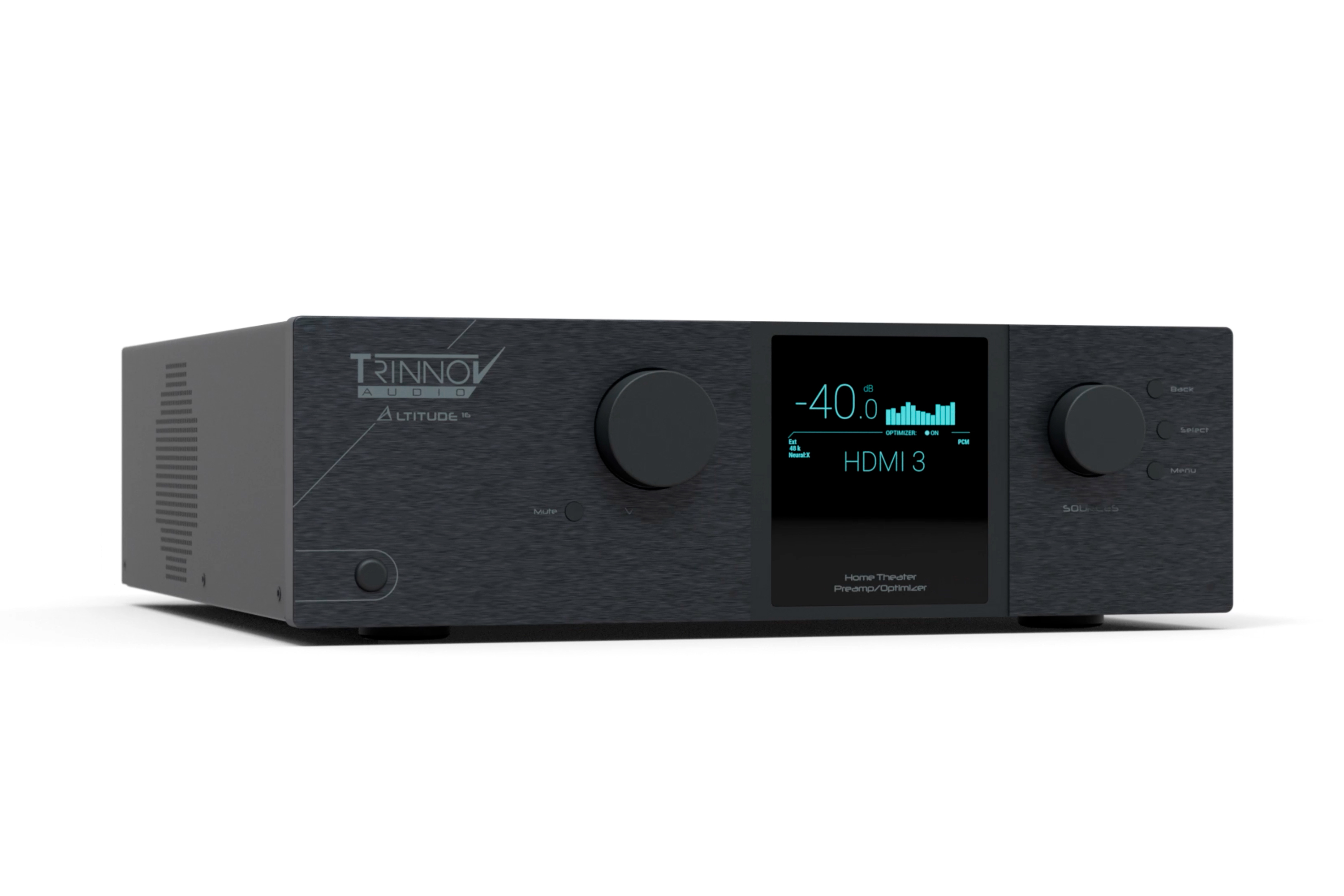

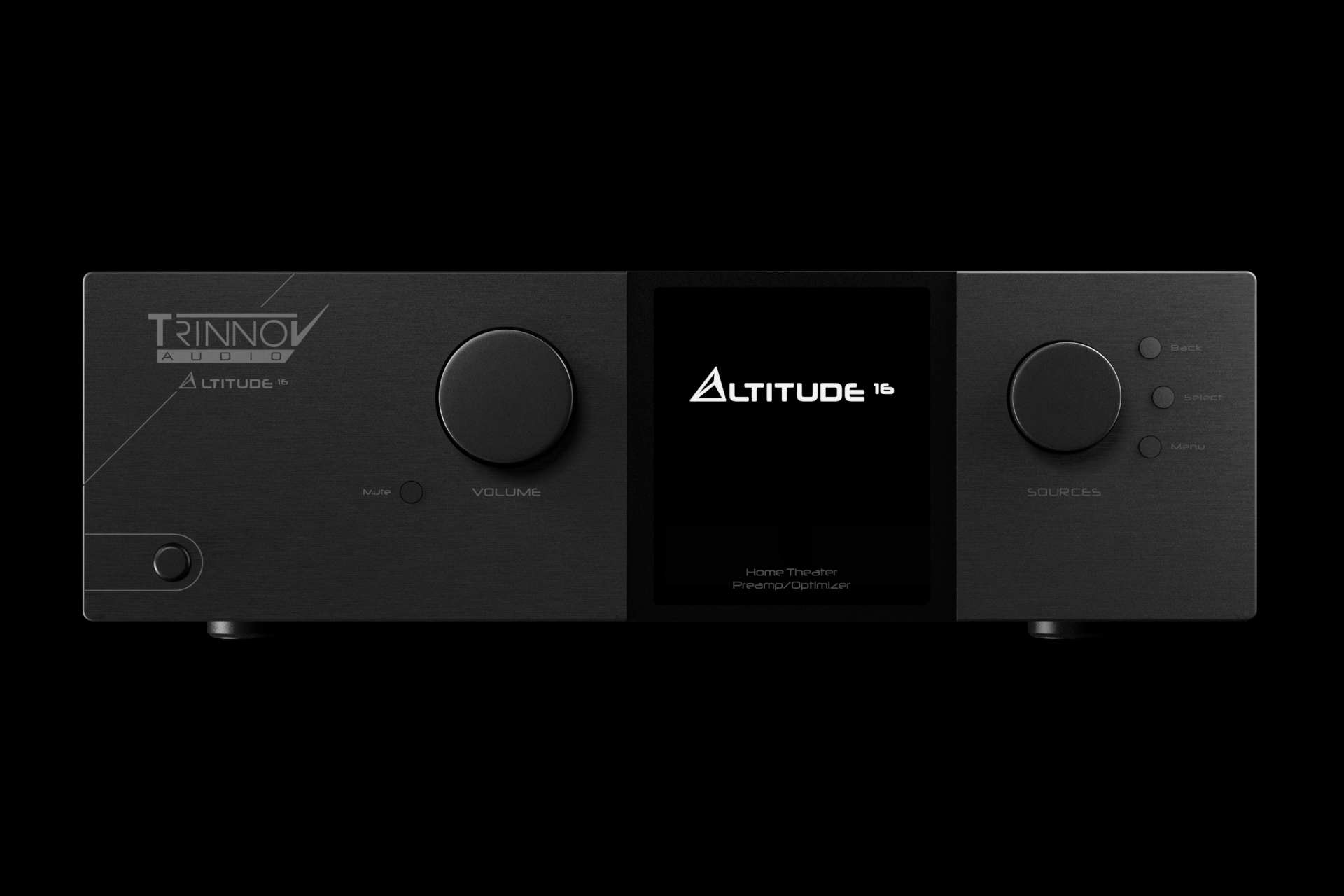

Trinnov Altitude16


The groundbreaking Altitude32 processor set the bar high -- and we didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.

Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24bit/96k audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.

You will find Altitude16 detail specification below. For a description of Trinnov Altitude Platform and its unique technologies and features, see Trinnov Audio introduction here.

Trinnov Altitude16


Object Based Decoding

Dolby Atmos® Native Decoding & Up-mix: Up to 20 discrete channels

Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1

DTS:X® Pro Native Decoding & Up-Mix: Up to 20 discrete channels

Speaker Layouts support: All

IMAX Enhanced: Yes

Channel Based Decoding

Dolby: Digital®, Digital Plus®, TrueHD®

DTS: Digital Surround®, High Res Audio®, HD Master Audio®

PCM: Up to 24 bits / 96 kHz

Roon: Yes

Channel Capabilities

Max Channels: 16+4

Max Optimizer Channels: 16+4

Max Subwoofers: 16+4

Max Crossovers 2/3/4 way: 10/6/5

Full Input / Output Matrix: Yes

Max configuration presets: 29

HDMI Connectivity

Output 1: HDMI 2.0 / HDCP 2.2

Output 2: HDMI 2.0 / HDCP 2.2

Inputs: 8

Maximum resolution: 4K UHD on all ins/outs

Maximum bandwidth: 18Gbps on all inputs

Frame rates supported: 24/25/30/50/60 fps (UHD) 120 fps (HD)

ARC / eARC: On Output 1

4K to 1080 Downscaling: On Output 1

OSD: Volume information displayed on-screen

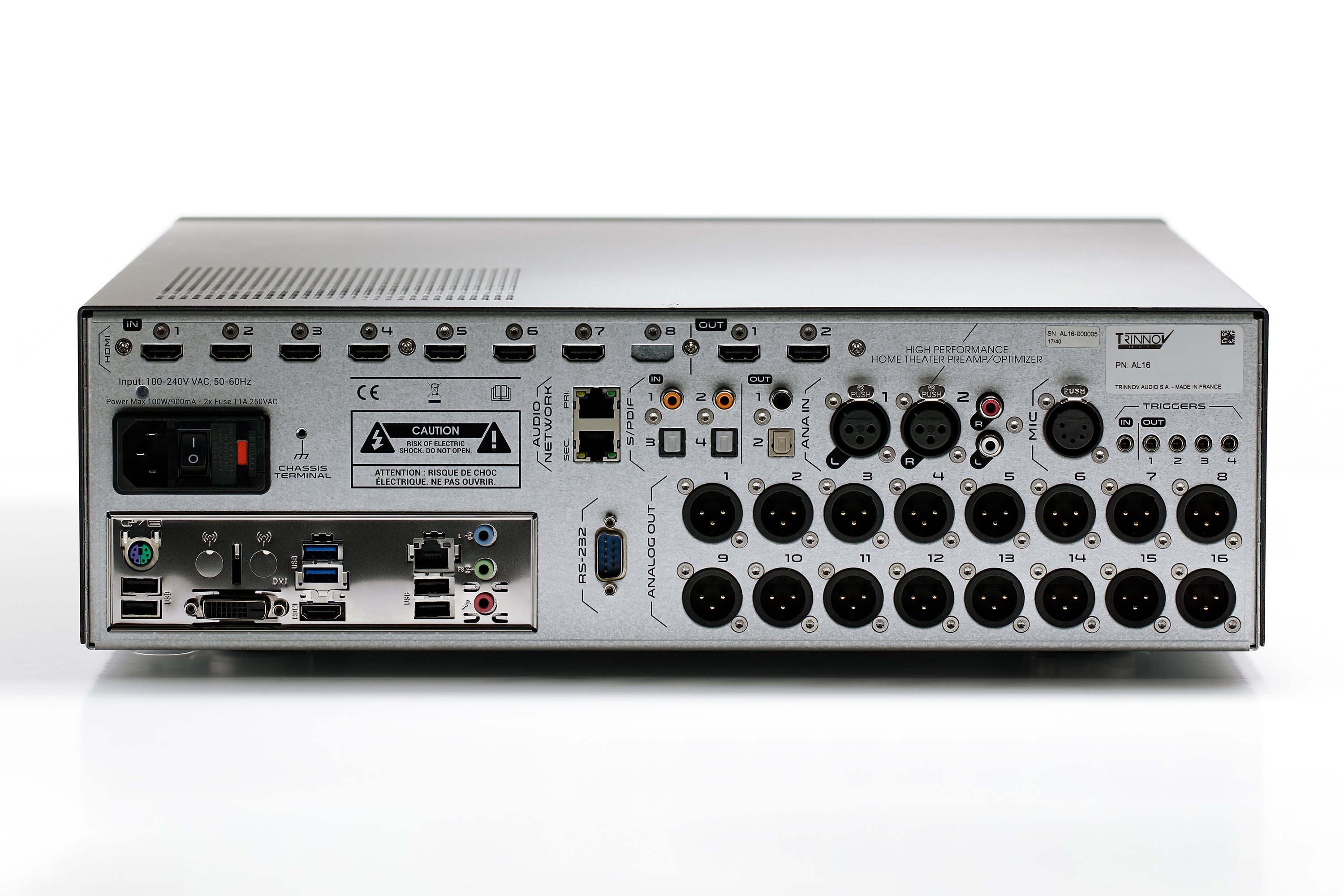

Digital Audio Connectivity

S/PDIF Inputs: x4 (2 optical, 2 coaxial)

S/PDIF Outputs: x2 (1 optical, 1 coaxial)

+4 Outputs: By combining Analog and S/PDIF outputs

Audio Network: Dual ports (for future use)

Analog Audio Connectivity

Microphone input: 1x 5 Pin XLR for 3D Microphone

Balanced inputs: 1x Stereo XLR

Unbalanced inputs: 1x Stereo RCA

Balanced outputs: 16x XLR

Input Impedance: 20k Ohms / 10k Ohms

Audio Processing

Data precision: 64 bits, floating point

Max Sampling Rate: Native, up to 96kHz


Processor: Intel multi core hyper threaded

ADC Resolution / Sampling Rate: 24 bits/96 kHz

DAC Resolution / Sampling Rate: 24 bits/192 kHz

A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)

D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)

Reference Level: +18dBu @ 0dBFS (Balanced)

Clock / Jitter: attenuation > 50 dB above 100Hz

Cooling system: Custom heat sinks & silent fans

Safety Components: AntiPop relays on each output

Power Supply

Power requirement: 100 - 240v (auto selecting)

Power consumption: 76W Max

Thermal conversion: 260 BTU/h Max

Mains fuse: 2x 1A slow blow

Internal PSUs: Separated supplies for Audio and Processing

Weight & Dimensions

Dimensions (W x H x D) mm: 438 x 139 x 430

Shipping dimensions (L x H x P) cm: 74 x 59 x 30

Weight: 11.3kg

Shipping weight / volume: 18.2kg / 0.131M3

Rackmounting: 3U - Rack Ears Included


Standard Warranty: 5 years

Transferable: Yes

Chassis Color

Chassis Color: Black
